Litenza LI-500 portable light tower, deployed and folded, on triple-wheel base

LI-500 · SINGLE-PERSON LIGHT TOWER

Zero fuel. Zero noise. Full-site output.

Name: Litenza LI-500 Portable Light Tower
Brand: Litenza

A single-person operated, battery-powered portable light tower for construction, mining, emergency response and firefighting — eliminating the fuel, noise, and maintenance costs of a diesel generator tower.

65,000 lmMax (AC, 5.3m)

4.2 / 5.3 mMast Heights

IP65Level 8 Wind Rated

Request LI-500 Quote → Full Specifications

Key Features

Zero noise, zero emissions, zero fuel/diesel cost, zero trailer cost
50kg-class unit enabling rapid single-person deployment
Triple-wheel, coaxial 3-wheel design with self-locking legs adapts to all terrains
IP65 weatherproof rating; withstands Level 8 wind resistance
Lithium battery powered (LI-24-500 series); also supports AC 100–277V
Fully rotatable lamp heads with adjustable beam angle
Unique Cloud-Axis electric telescopic pole — lightweight yet stable
Multi-level self-locking legs with integrated dual-axis level
Handheld spring-wire controller — no bending required to adjust
Waterproof storage compartment with USB Type-A and Type-C ports
Manual pole retraction via clutch release if battery isn't changed in time
Wading depth up to 10cm

Technical Specifications

Specification	LI-500 (4.2 m)	LI-500 (5.3 m)
Extended Height	4.2 m	5.3 m
Retracted Height	1.2 m	1.3 m
Weight (fitting only, excl. battery)	50 kg	52 kg
Power Supply	Battery / AC 100–277V
Lumens — Battery Powered	0 – 33,000 lm	0 – 35,000 lm
Lumens — AC Powered	0 – 62,000 lm	0 – 65,000 lm
Run Time (Standard, 3x LI-24-500)	>20 hours
Run Time Range (Eco – Turbo)	10 – 100 hours
IP Grade	IP65
Wind Resistance	Level 8
Wading Depth	Up to 10 cm
USB Output	Type-A (5V/2A) & Type-C (5V/2A)
Footprint (legs deployed)	111 cm x 109 cm
Base Width (folded)	54 – 60 cm

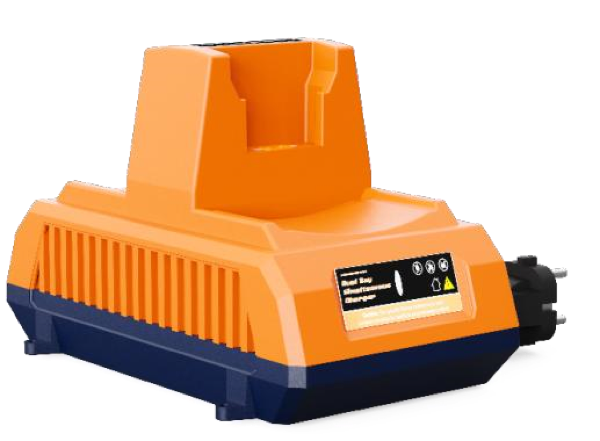

Standard Kit (4.2 m)	1× LI-500-4.2m, 3× LI-24-500 Battery, 1× LI-MC-2H Charger, 1× X5-320 AC Driver
Standard Kit (5.3 m)	1× LI-500-5.3m, 3× LI-24-500 Battery, 1× LI-MC-2H Charger, 1× X5-320 AC Driver

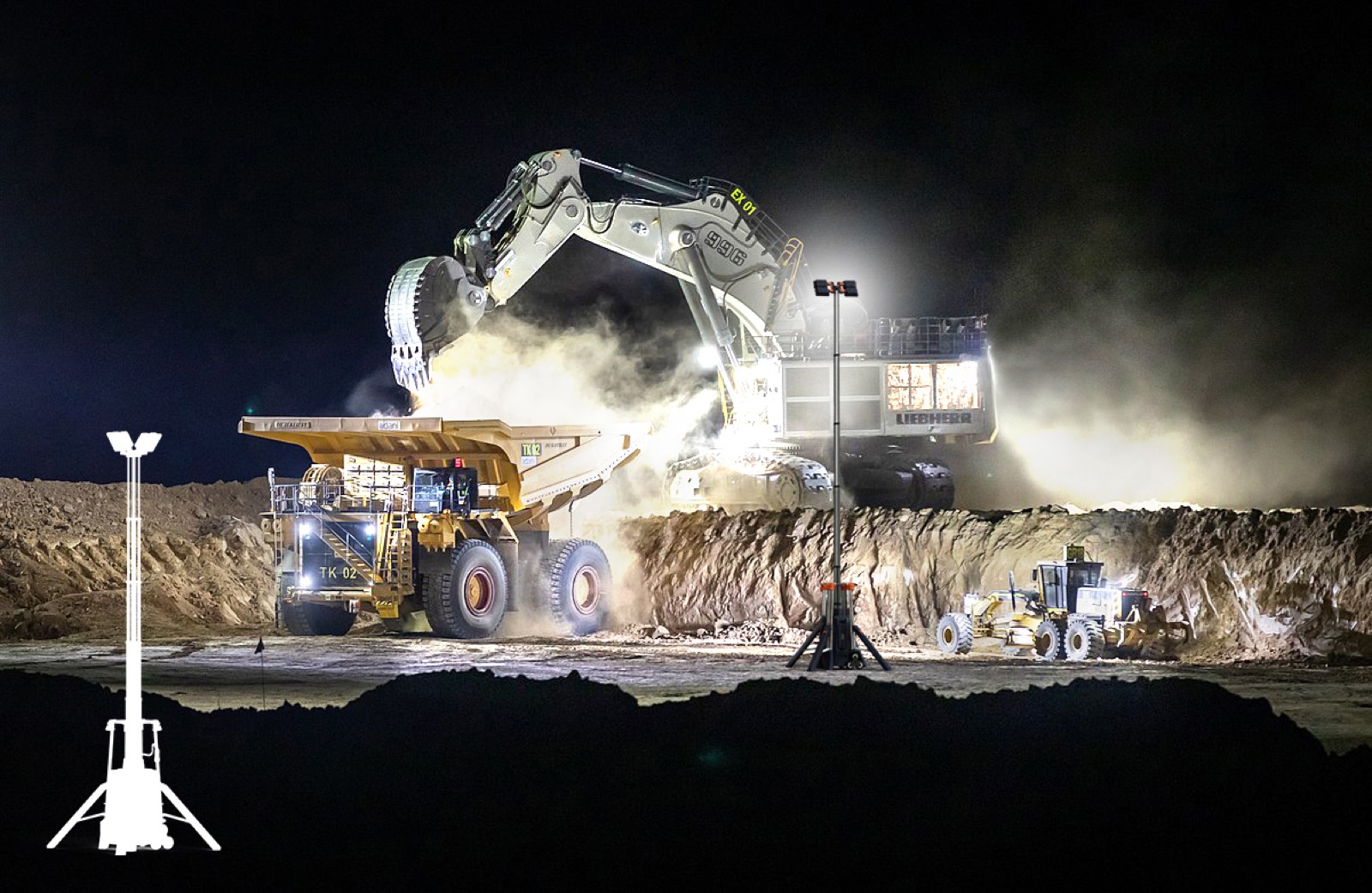

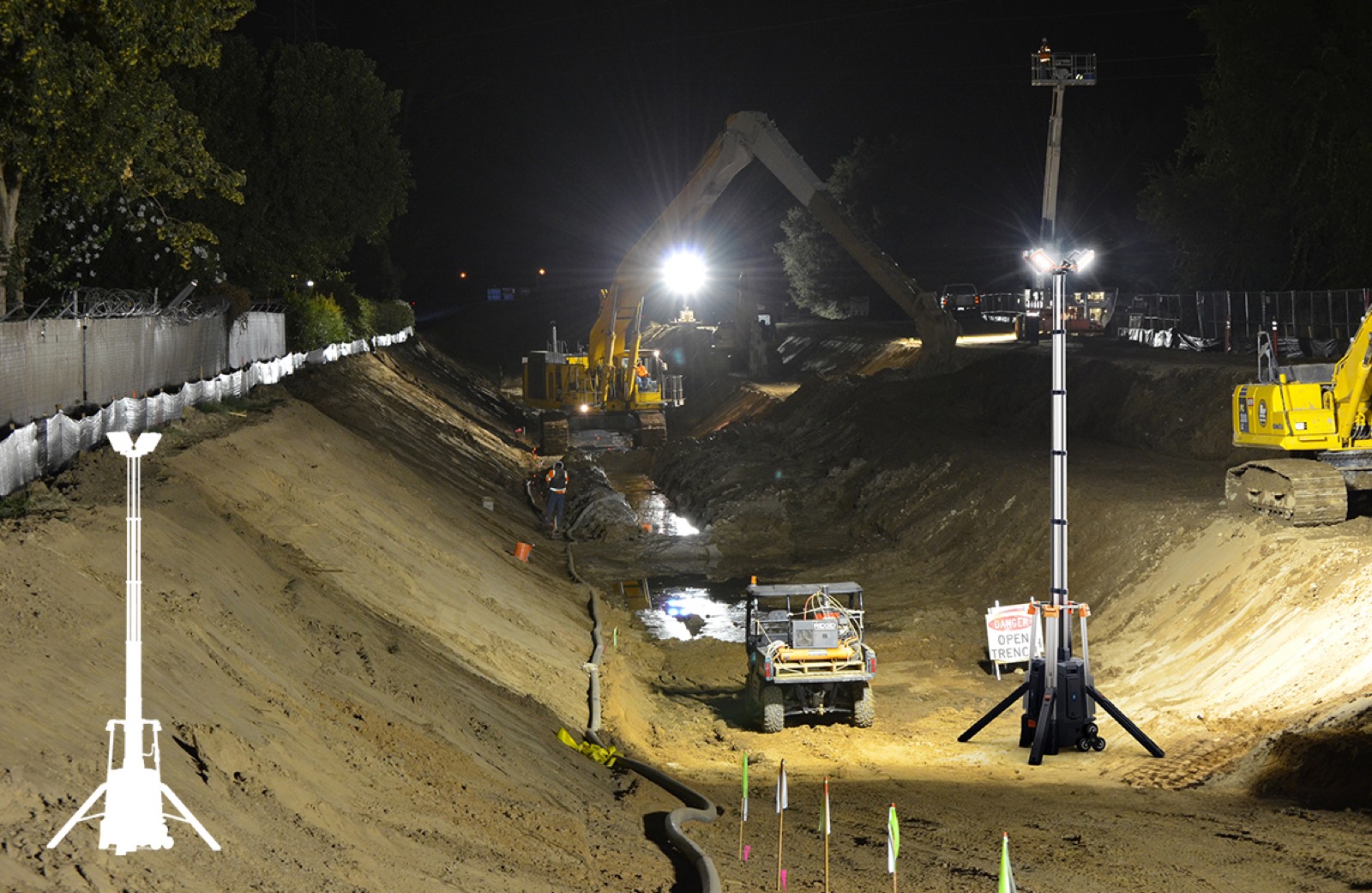

Applications	Construction, mining, emergency response, sporting events, firefighting, outdoor events

Source: Litenza LI-500 product specification sheet. Specifications subject to change without notice.

Brightness by Mode (Battery Powered)

Mast Height	Eco	Balanced	Standard	Turbo
4.2 m	2,800 lm	9,500 lm	17,000 lm	33,000 lm
5.3 m	3,000 lm	10,000 lm	18,000 lm	35,000 lm

AC-powered mode offers stepless dimming from 0–62,000 lm (4.2 m) or 0–65,000 lm (5.3 m) via a knob on the driver. Three lighting distance modes are also available: Distance, Midrange, and Close-range.
